Fanless Flat True Industrial Touch Panel PC 10.1'' Capacitive IP55 Front 350cd/m2

Product Categories

AXNEW DISPLAY TECHNOLOGY CO.,LTD

Contact Now

Name: Fanless Flat True Industrial Touch Panel PC 101 Capacitive IP55 Front 350cdm2
Brand: AXNEW
Price: 1 USD

Brand Name : AXNEW

Model Number : AXD-10OPPC-V2A8

Certification : CE.ROHS

Place of Origin : Shenzhen China

MOQ : 10 units

Price : negotiation

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 1500 pieces/month

Delivery Time : 7 working days

Packaging Details : 5 Pcs /Carton with firm foam

Brightness : 350cd/m^2

Contrast Ratio : 800:1

Pixel : 1280X800

Screen Size : 10.1 inch

Application : industrial|Kiosk|Medical device

Feature : HD|slim|thin|high definition

Panel Type : TFT

Product name : Fanless capacitiveTouch Panel PC

Technology : IPS;IP55 treatment on bezel

Voltage : 12V or 24 V optional

Ports : 4xUSB, 1XCOM, 1XVGA, AV

Contact Now

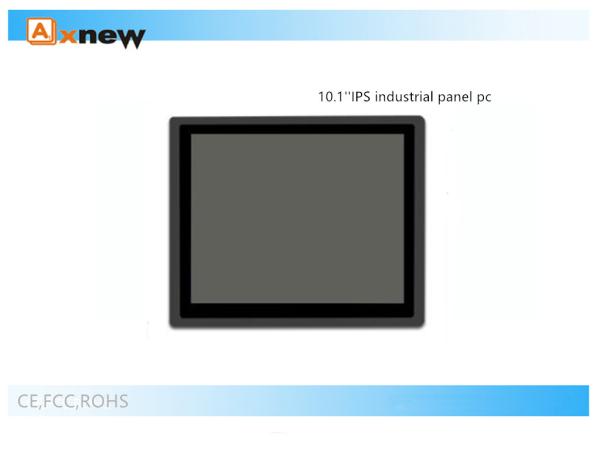

Fanless Flat true 10.1'' Capacitive touch panel pc with Panel Mount, IP55 front

Panel PC information
Model Number	AXD-10OPPC-V2A8
Model Number	10’’ Fanless industrial Touch pc with resistive touch
Case/Bezel Color	Black
TFT Type	IPS LCD with LED backlight
Aspect ratio	16:10
Useful Screen Area	220.6 mm x 139.6 mm
Touch Panel	Industrial capacitive Flat Screen with eeti chipset
Touch response time	10ms (typical)
Touch PC Dimensions	281x 200x46 mm
Optimal (native) Resolution	1280 x 800
LCD panel Pixel pitch	0.1695 x 0.1695 mm
LCD panel Colors	262K/16.7 million
LCD panel Brightness	350 cd/m2
LCD panel Response Time	25 ms
Contrast Ratio	800:1
Viewing Angle ( Wide )
Horizontal (left/right)	±85° or 170° total
Vertical (up/down)	85°(up), 85°(down) or 170° total
Output Interface	COM/HDMI type/ Audio/Mic
Input Interface	USB*3
Net	Internet LAN
Watch Dog Technology	Support
Power Specification	External AC to DC power brick
	input: +12VDC ±5%,4.0 A; DC Jack (2.5); DC 24V 3Pin phoenix input
	AC to DC power brick input: 100-240 VAC, 50/60 Hz
	Power dissipation: 36W max
ECM (Embed Computer Module)	Intel® processor J1900 (1.9GHz + NM10 Chipset); SSD: 64G;Rom:4G(DDR3,max6G); Operation System:Win7/10/Vista/Linux
Temperature	Operating: -20°C to 60°C ;Storage -20°C to 70°C
Humidity (non condensing)	Operating: 20%-90%; Storage: 10%-95%
Shipping Carton Dimensions	490 x 440 x340 mm (Five pieces in one )
Weight (approx.)	Actual: 11kg ;Shipping: 15kg
Dimensions
Holes fixings	Clamp mount on sides
Mechanical dimensions	281x 200x46mm
Drawings	Please contact us for details

Fanless Flat True Industrial Touch Panel PC 10.1'' Capacitive IP55 Front 350cd/m2
